Gravel - Drop Handlebars


CHECKPOINT AL 3 £1000

Frame200 Series Alpha Aluminum, tapered head tube, Control Freak internal routing, rack and mudguard mounts, flat mount disc, 142x12mm thru axle
ForksCheckpoint carbon, tapered alloy steerer, rack and mudguard mounts, flat-mount disc, 12x100 mm thru axle
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Shift LeversShimano Sora R3000, 2x9 speed
Rear DerailleurShimano Sora R3000, long cage, 34T max cog
CassetteShimano Sora HG400, 11-32
CranksetShimano Sora R3000, 50/34 (compact)
BrakesTektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor
Sizes 44, 49, 52, 54, 56, 58, 61cm

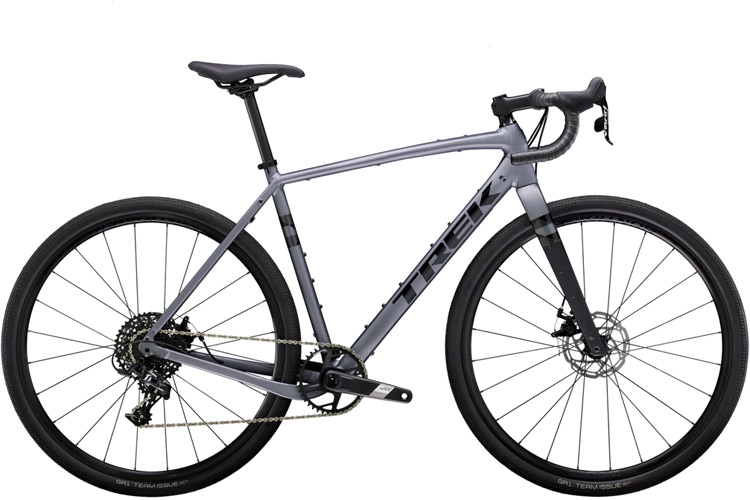

CHECKPOINT AL 4 £1250

FrameAlpha 200 series aluminium, tapered head-tube, BB86.5, flat mount disc brakes, 12mm thru-axle, internal cable routing, with rack mounts and hidden mudguard mounts
ForksCheckpoint carbon disc, tapered steerer, flat mount disc brakes, rack mounts, hidden mudguard mounts
TyresBontrager R1 Hard-Case Lite, 700x32c
Shift LeversShimano Tiagra, 2x10 speed
Rear DerailleurShimano Tiagra
CassetteShimano Tiagra, 11-32
CranksetShimano Tiagra, 50/34 (compact)
BrakesTektro C550, dual-piston mechanical disc brake, 160 mm rotor
Sizes 54cm

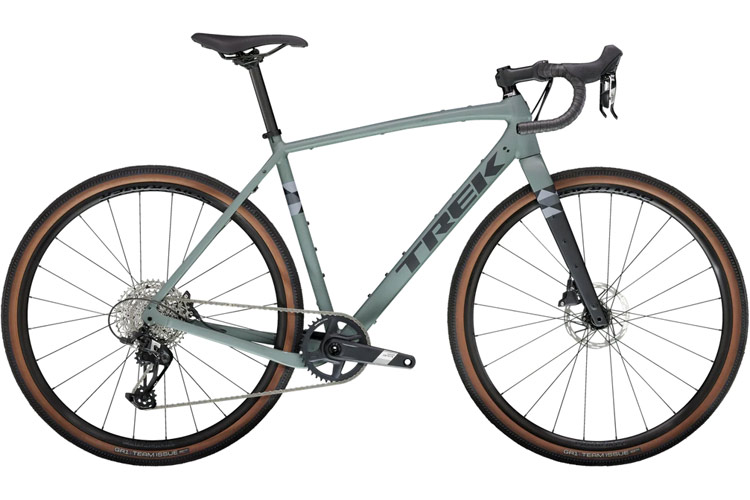

CHECKPOINT ALR 5 £1700

Frame300 Series Alpha Aluminium, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
ForksCheckpoint carbon, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
TyresBontrager GR1 Comp, wire bead, 60 tpi, 700x40c
Shift LeversShimano 105 R7020, 2x11 speed
Rear DerailleurShimano 105 R7000, Shadow design, medium cage
CassetteShimano 105 HG700-11, 11-34
CranksetShimano 105 R7000, 50/34 (compact)
Sizes49, 52, 54, 56, 58, 61cm

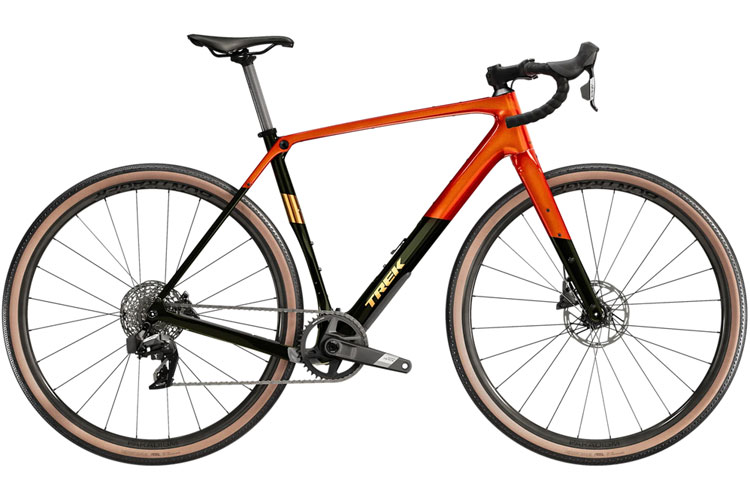

CHECKPOINT SL 5 £2600

Frame500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, Ride Tuned Seatmast, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
ForksCheckpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
TyresBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
Shift LeversShimano 105 R7020, 2x11 speed
Rear DerailleurShimano 105 R7000, Shadow design, medium cage
CassetteShimano 105 HG700-11, 11-34
CranksetShimano 105 R7000, 50/34 (compact), 172.5 mm length
Sizes49, 52, 54, 56, 58, 61cm




Road - Drop Handlebars



Madone SL Carbon Frame

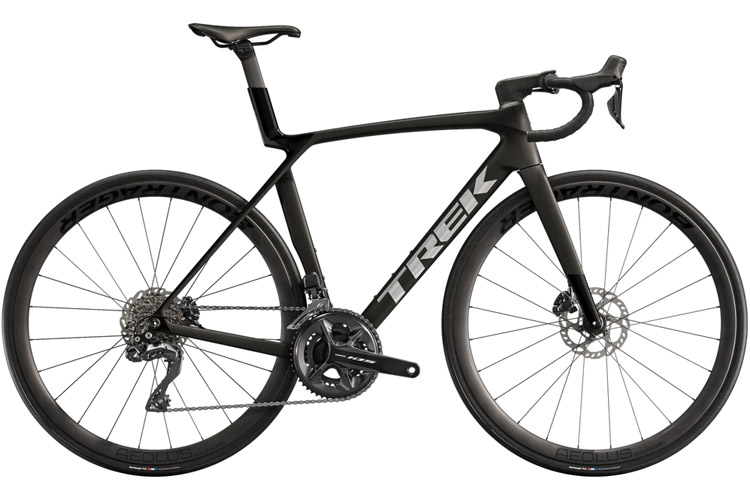

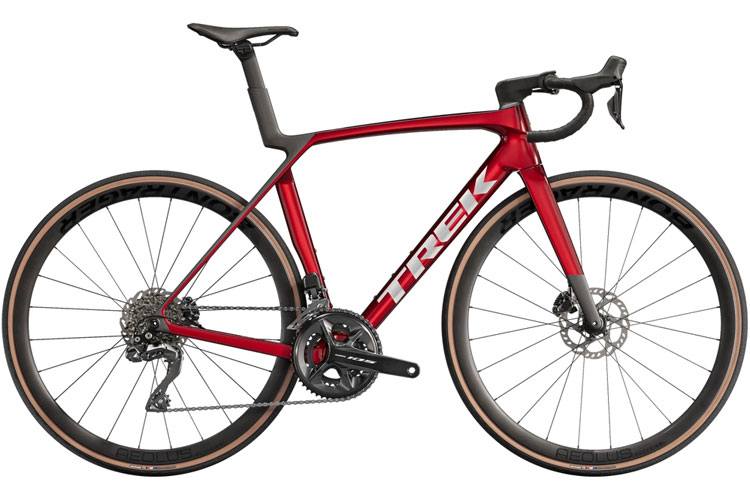

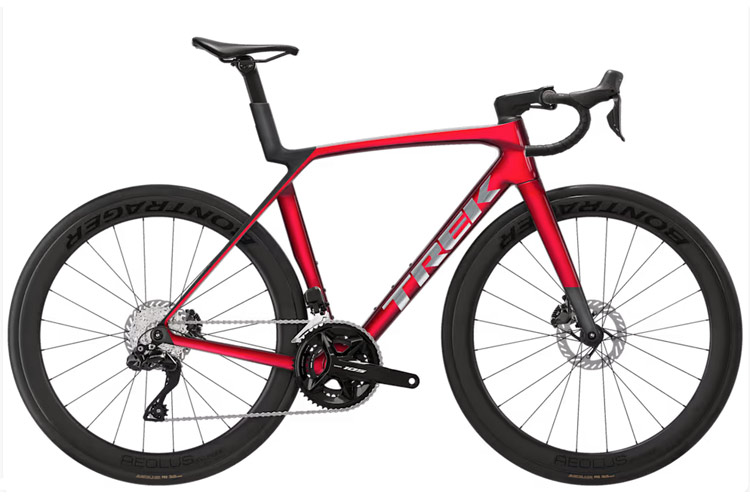

MADONE SL 6 Disc £3900

Frame500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape,adjustable toptube isospeed, invisible cable routing, flat mount disc, 142x12mm thru axle
ForksMadone KVF Full Carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Wheels Bontrager Aeolus Comp 5, Tubeless Ready, 18mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes50, 52, 54, 56, 58, 60, 62cm

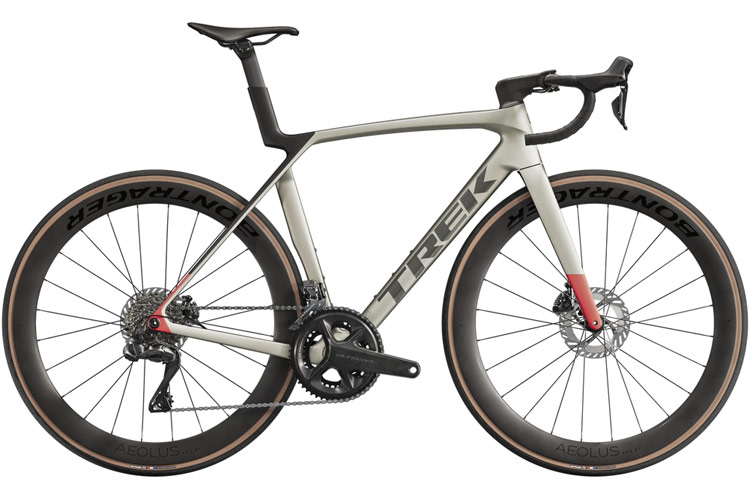

MADONE SL 7 Di2 Disc £5200

Frame500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape,adjustable toptube isospeed, invisible cable routing, flat mount disc, 142x12mm thru axle
ForksMadone KVF Full Carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
WheelsCARBON Bontrager OCLV Aeolus Pro 5, Tubeless Ready, 19.5mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra Di2 R8070, 2x11 speed
Rear DerailleurShimano Ultegra R8050 Di2, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes50, 52, 54, 56, 58, 60, 62cm


Madone SLR Carbon Frame




MADONE SLR 6 Speed Disc Standard Colour £5500

MADONE SLR 6 Speed Disc Project One Colours £6050

Frame700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
ForksMadone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
WheelsCARBON Bontrager OCLV Aeolus Pro 5, Tubeless Ready, 19.5mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes50, 52, 54, 56, 58, 60, 62cm


MADONE SLR 6 Disc £5950

Frame700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksMadone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
WheelsCARBON Bontrager OCLV Aeolus Pro 5, Tubeless Ready, 19.5mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
Sizes50, 52, 54, 56, 58, 60, 62cm

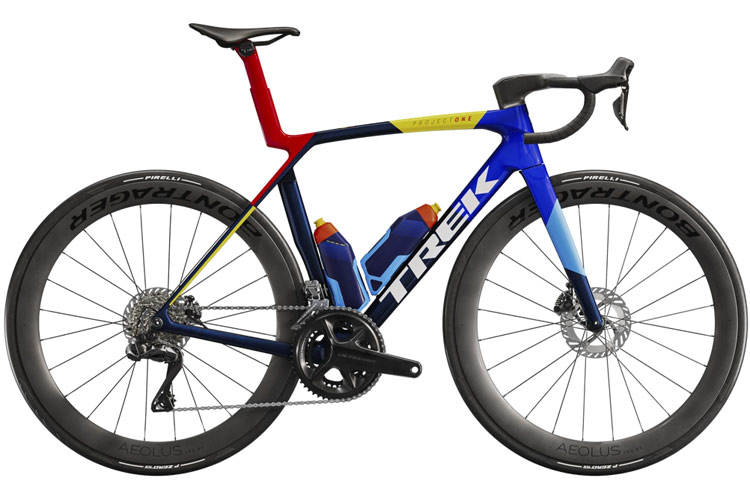

MADONE SLR 7 Disc Di2 Standard Colour £7000

MADONE SLR 7 Disc Di2 Project One Colours £7550

Frame700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksMadone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
WheelsCARBON Bontrager OCLV Aeolus Pro 5, Tubeless Ready, 19.5mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Shift LeversShimano Ultegra Di2, R8070, 2x11 speed
Rear DerailleurShimano Ultegra R8050 Di2, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
Sizes50, 52, 54, 56, 58, 60, 62cm


MADONE SLR 7 Disc eTap Standard Colour £7100

MADONE SLR 7 Disc eTap Project One Colours £7650

Frame700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksMadone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
WheelsCARBON Bontrager OCLV Aeolus Pro 5, Tubeless Ready, 19.5mm rim width, 50mm depth, 12mm through axles (100mm F, x142mm R)
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Shift LeversSRAM Force eTap AXS, 2x12 speed
Rear DerailleurSRAM Force eTap AXS, Orbit chain management, 33T max cog
CassetteSRAM Force XG-1270, 10-28
CranksetSRAM Force, 48/35, 24 mm spindle
Sizes50, 52, 54, 56, 58, 60, 62cm


Émonda Aluminium Frame


ÉMONDA ALR 4 Disc £1400

FrameUltralight 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, 142x12mm thru-axle
ForksÉmonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
TyresBontrager R1 Hard-Case Lite, wire bead, 700x25c
Shift LeversShimano Tiagra R4720, 2x10 speed
Rear DerailleurShimano Tiagra 4700, long cage
CassetteShimano Tiagra HG500, 12-28
CranksetShimano Tiagra 4700, 50/34, 172.5 mm length
BrakesShimano Tiagra R4770 hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA ALR 5 Disc £1650

FrameUltralight 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, 142x12mm thru-axle
ForksÉmonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
TyresBontrager R1 Hard-Case Lite, 700x 25c
Shift LeversShimano 105R7020, 2x11 speed
Rear DerailleurShimano 105 R7000, short cage, 30T max cog
CassetteShimano 105 R7000, 11-28
CranksetShimano 105 R7000, 50/34 (compact)
BrakesShimano 105 flat-mount hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


Émonda SL Carbon Frame

ÉMONDA SL 5 £1550

FrameUltralight 500 Series OCLV Carbon, tapered head tube, BB90, direct mount rim brakes, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
ForksÉmonda carbon, tapered steerer, direct-mount rim brakes
TyresBontrager R1 Hard-Case Lite, 700x25c
Shift LeversShimano 105, 2x11 speed
Rear DerailleurShimano 105
CassetteShimano 105, 11-28
CranksetShimano 105, 50/34 (compact)
BrakesShimano 105 direct mount
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA SL 5 Disc £2000

FrameUltralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, Ride Tuned seatmast, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksÉmonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28c
Shift LeversShimano 105 R7020, 2x11 speed
Rear DerailleurShimano 105 R7000, short cage, 30T max cog
CassetteShimano 105 R7000, 11-28
CranksetShimano 105 R7000, 50/34 (compact)
Sizes47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA SL 6 £2000

FrameUltralight 500 Series OCLV Carbon, tapered head tube, BB90, direct mount rim brakes, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
ForksÉmonda full carbon, carbon tapered steerer, carbon dropouts, direct-mount rim brakes
TyresBontrager R2 Hard-Case Lite, aramid bead, 700x25c
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesBontrager Speed Stop, direct mount
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA SL 6 Disc £2400

FrameUltralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, Ride Tuned seatmast, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksÉmonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
TyresBontrager R2 Hard-Case Lite, aramid bead, 700x28c
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 disc
Sizes47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA SL 6 Disc Pro £3100

Same spec as SL6 Disc, but with CARBON WHEEL SET - BONTRAGER OCLV AEOLUS PRO 3, Tubeless Ready,
19.5mm rim width, 35mm height, 12mm through axles (100mm F, 142mm R)


ÉMONDA SL 7 Disc Di2 £4200

CARBON WHEELS and other spec as in SL6 DISC PRO, but TRANSMISSION UPGRADE to ULTEGRA Di2 ( R8070 Shifters, R8050 mechs )


ÉMONDA SL 7 Disc eTap £4300

FrameUltralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, Ride Tuned seatmast, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksÉmonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
TyresBontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c
WheelsCARBON Bontrager OCLV Aeolus Pro 3, Tubeless Ready, 19.5mm rim width, 35mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversSRAM Force eTap AXS, 12 speed
Rear DerailleurSRAM Force eTap AXS, Orbit chain management, 33T max cog
CassetteSRAM Force XG-1270, 10-28
CranksetSRAM Force, 48/35, 24 mm spindle
BrakesSRAM Force disc
Sizes47, 50, 52, 54, 56, 58, 60, 62, 64cm


ÉMONDA SLR 6 Disc £4800

FrameUltralight 700 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
ForksÉmonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
WheelsCARBON Bontrager OCLV Aeolus Pro 3, Tubeless Ready, 19.5mm rim width, 35mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


ÉMONDA SLR 7 Disc Di2Standard Colour £5300

ÉMONDA SLR 7 Disc Project One Colours £5850

FrameUltralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
ForksÉmonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
WheelsCARBON Bontrager OCLV Aeolus Pro 3, Tubeless Ready, 19.5mm rim width, 35mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra R8070 Di2, 2x11 speed
Rear DerailleurShimano Ultegra R8050 Di2, short cage, 30T max cog
CassetteShimano Ultegra R8000, 11-28
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


ÉMONDA SLR 7 Disc eTap £5950

FrameUltralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
ForksÉmonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
WheelsCARBON Bontrager OCLV Aeolus Pro 3, Tubeless Ready, 19.5mm rim width, 35mm depth, 12mm through axles (100mm F, x142mm R)
Shift LeversSRAM Force eTap AXS, 2x12 speed
Rear DerailleurSRAM Force eTap AXS, Orbit chain management, 33T max cog
CassetteSRAM Force XG-1270, 10-28
CranksetSRAM Force, 48/35, 24 mm spindle
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


Domane Aluminium Frame

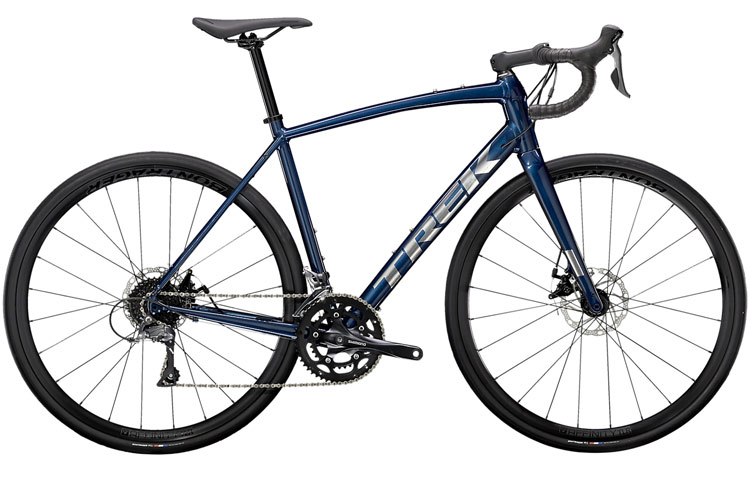

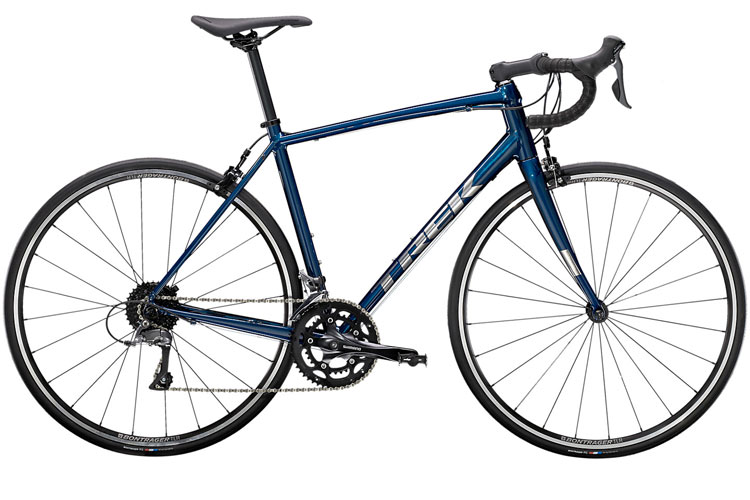

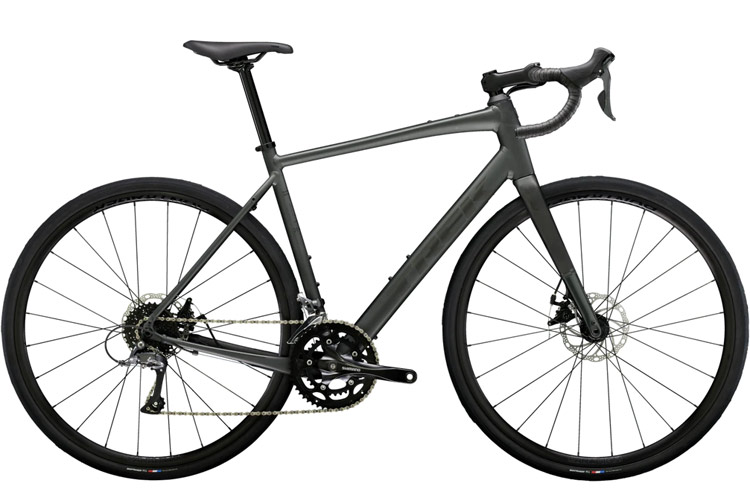

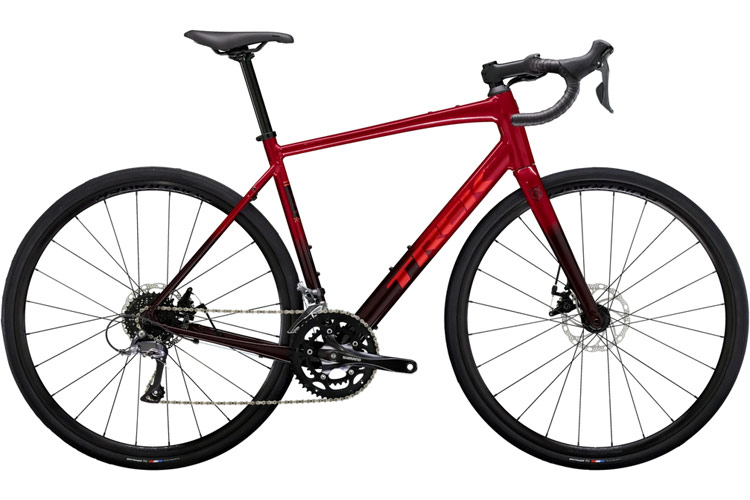

DOMANE AL 2 £595

Frame100 Series Alpha Aluminium, hidden mudguard mounts, DuoTrap S-compatible, 130x5 mm QR
ForksDomane carbon, straight alloy steerer, mudguard mounts, 5x100 mm QR
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28c
Shift LeversShimano Claris R2000, 2x8 speed
Rear DerailleurShimano Claris R2000, long cage, 34T max cog
CassetteShimano HG31, 11-32
CranksetShimano RS200, 50/34 (compact)
BrakesAlloy dual-pivot
SizesMen's 47, 50, 52, 54, 56, 58, 60, 62cm
Women's 44, 47, 50, 52, 54, 56cm


DOMANE AL 3 £750

Frame100 Series Alpha Aluminium, DuoTrap S compatible, hidden mudguard mounts
ForksDomane carbon, hidden mudguard mounts
TyresBontrager R1 Hard-Case Lite, 700x28c
Shift LeversShimano Sora, 2x9 speed
Rear DerailleurShimano Sora
CassetteShimano Sora, 11-32
CranksetShimano Sora, 50/34 (compact)
BrakesAlloy dual-pivot
SizesMen's 47, 50, 52, 54, 56, 58, 60, 62cm
Women's 44, 47, 50, 52, 54, 56cm


Domane SL Carbon Frame


DOMANE SL 4 £2100

Frame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100mm thru axle
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Shift LeversShimano Tiagra R4720, 2x10 speed
Rear DerailleurShimano Tiagra 4700, long cage
CassetteShimano Tiagra HG500, 12-28
CranksetPraxis Alba M30, 50/34 (compact), 30 mm spindle
BrakesTektro Spyre-C cable disc
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62cm

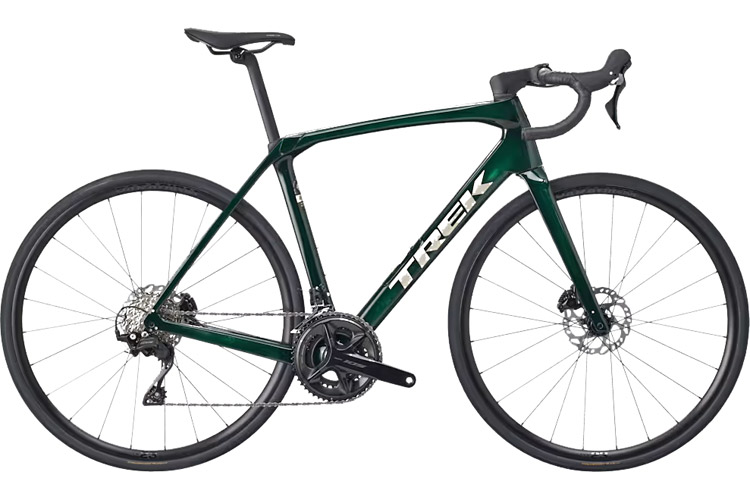

DOMANE SL 5 £2450

Frame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12mm thru axle
ForksDomane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc 12x100 mm thru axle
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Shift LeversShimano 105 R7020, 2x11 speed
Rear DerailleurShimano 105 R7000, Shadow design, medium cage
CassetteShimano 105 HG700-11, 11-34
CranksetShimano 105 R7000, 50/34 (compact)
BrakesShimano 105 R7070 hydraulic disc
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SL 6 £3200

Frame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane carbon disc, carbon tapered steerer, flat mount disc brakes, 12 mm thru-axle
TyresBontrager R1 Hard-Case Lite, aramid bead, 60 tpi, 700x32c
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, long cage, 34T max cog
CassetteShimano Ultegra HG800-11, 11-34
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SL 7 Di2 £4900

Frame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane carbon disc, carbon tapered steerer, flat mount disc brakes, 12 mm thru-axle
WheelsCARBON Bontrager OCLV Aeolus Pro 3V, Tubeless Ready, 25mm rim width, 12mm through axles (100mm F, x142mm R)
TyresBontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x32c
Shift LeversShimano Ultegra Di2,R8070, 2x11 speed
Rear DerailleurShimano Ultegra R8050 Di2, long cage, 34T max cog
CassetteShimano Ultegra HG800-11, 11-34
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SL 7 eTap £5000

Frame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
TyresBontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x32c
WheelsCARBON Bontrager OCLV Aeolus Pro 3V, Tubeless Ready, 25mm rim width, 12mm through axles (100mm F, x142mm R)
Shift LeversSRAM Force eTap AXS, 2x12 speed
Rear DerailleurSRAM Force eTap AXS, Orbit chain management, 33T max cog
CassetteSRAM Force XG-1270, 10-33
CranksetSRAM Force, 46/33, DUB spindle
BrakesSRAM Force eTap AXS hydraulic disc
Sizes44, 47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SLR 6 £5400

Frame600 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, BITS internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
ForksDomane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
TyresBontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
WheelsCARBON Bontrager OCLV Aeolus Pro 3V, Tubeless Ready, 25mm rim width, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra R8020, 2x11 speed
Rear DerailleurShimano Ultegra R8000, long cage, 34T max cog
CassetteShimano Ultegra HG800-11, 11-34
CranksetShimano Ultegra R8000, 50/34 (compact)
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SLR 7 Di2 Standard Colour £6000

DOMANE SLR 7 Project One Colours £6550

Frame700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
WheelsCARBON Bontrager OCLV Aeolus Pro 3V, Tubeless Ready, 25mm rim width, 12mm through axles (100mm F, x142mm R)
Shift LeversShimano Ultegra Di2,R8070, 2x11 speed
Rear DerailleurShimano Ultegra R8050 Di2, long cage, 34T max cog
CassetteShimano Ultegra HG800-11, 11-34
CranksetShimano Ultegra R8000, 50/34 (compact)
BrakesShimano Ultegra R8070 hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


DOMANE SLR 7 eTap £6650

Frame700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 142x12mm thru axle
ForksDomane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
TyresBontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
WheelsCARBON Bontrager OCLV Aeolus Pro 3V, Tubeless Ready, 25mm rim width, 12mm through axles (100mm F, x142mm R)
Shift LeversSRAM Force eTap AXS, 2x12 speed
Rear DerailleurSRAM Force eTap AXS, Orbit chain management, 33T max cog
CassetteSRAM Force XG-1270, 10-28
CranksetSRAM Force, 48/35, 24 mm spindle
BrakesSRAM Force eTap AXS hydraulic disc
Sizes47, 50, 52, 54, 56, 58, 60, 62cm


Trek 2019
Gravel - Drop Handlebars

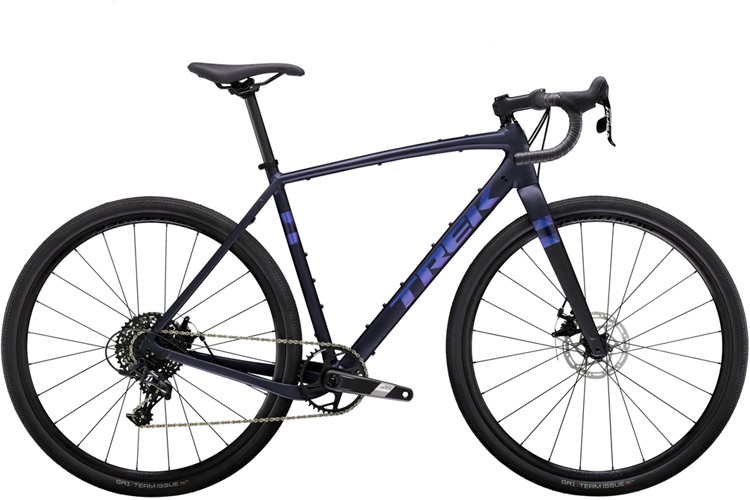

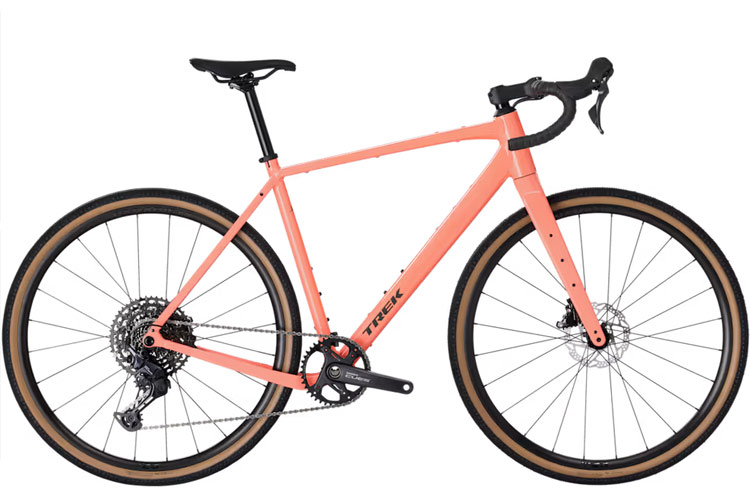

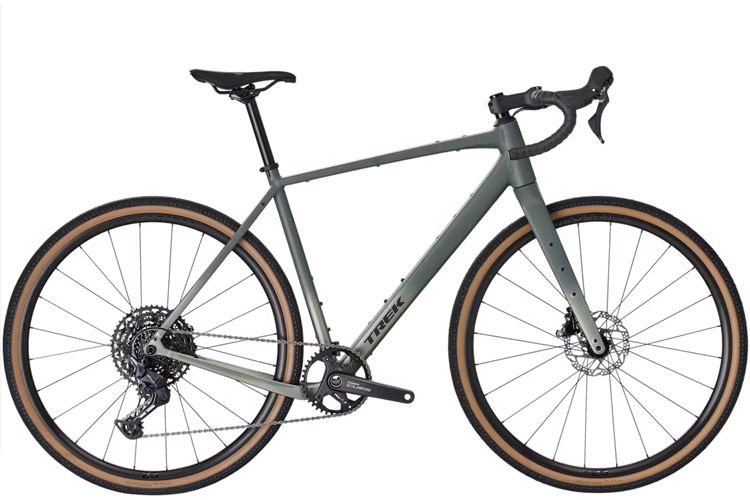

CHECKPOINT ALR 4 £1450 SALE PRICE 56, 58cm £1299

Frame300 Series Alpha Aluminium, tapered head tube, BB86.5, flat mount disc brakes, Stranglehold dropouts, 12mm thru axle, Control Freak, internal cable routing, 3S chain keeper
ForksCheckpoint carbon disc, alloy tapered steerer, flat mount disc brakes, rack mounts, hidden mudguard mounts, 12mm thru axle
TyresSchwalbe G-One Allround, aramid bead, 700x35c
Shift LeversShimano RS405, 2x10 speed
Rear DerailleurShimano Tiagra
CassetteShimano Tiagra, 11-34
CranksetShimano Tiagra, 50/34 (compact)
BrakesShimano RS505 flat mount hydraulic disc
Sizes56, 58cm

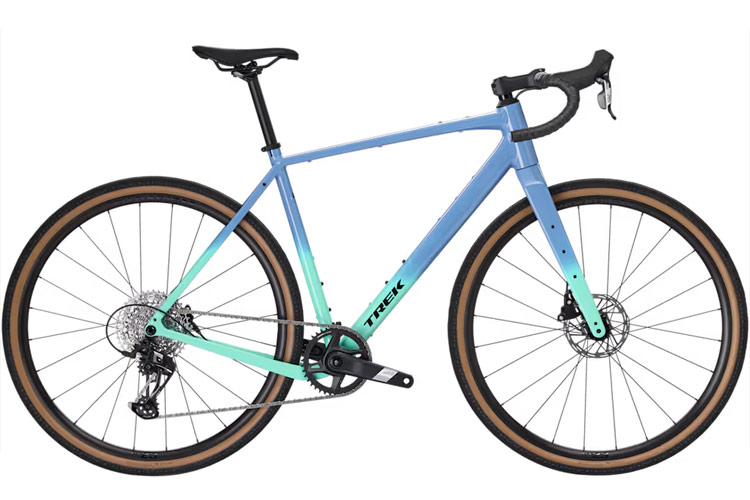

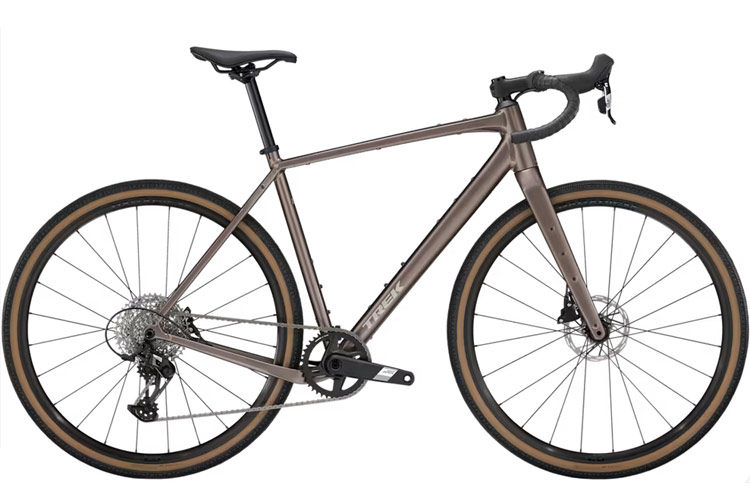

CHECKPOINT ALR 5 £1700 SALE PRICE 56cm £1530

Frame300 Series Alpha Aluminium, tapered head tube, BB86.5, flat mount disc brakes, Stranglehold dropouts, 12mm thru axle, Control Freak, internal cable routing, 3S chain keeper
ForksCheckpoint carbon disc, alloy tapered steerer, flat mount disc brakes, rack mounts, hidden mudguard mounts, 12mm thru axle
TyresSchwalbe G-One Allround, aramid bead, 700x35c
Shift LeversShimano RS505, 2x11 speed
Rear DerailleurShimano 105
CassetteShimano HG800, 11-34
CranksetShimano 105, 50/34 (compact)
BrakesShimano RS505 flat mount hydraulic disc
Sizes 56cm


Road - Drop Handlebars

Émonda Aluminium Frame

ÉMONDA ALR 4 Disc £1400 SALE PRICE 54cm £1260

FrameUltralight 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, BB86.5, flat mount disc brakes, 12mm thru-axle, internal cable routing, DuoTrap S compatible
ForksÉmonda carbon disc, carbon tapered steerer, flat mount disc brakes, 12 mm thru-axle
TyresBontrager R1 Hard-Case Lite, 700x25c
Shift LeversShimano RS405, 2x10 speed
Rear DerailleurShimano Tiagra
CassetteShimano Tiagra, 11-28
CranksetShimano Tiagra, 50/34 (compact)
BrakesShimano RS405 flat mount hydraulic disc
Sizes50, 52, 54, 56, 58, 60, 62cm


Domane Aluminium Frame

DOMANE AL 2 £595 SALE PRICE mens 56cm, womens 52cm £535

Frame100 Series Alpha Aluminium, DuoTrap S compatible, hidden mudguard mounts
ForksDomane carbon, hidden mudguard mounts
TyresBontrager R1 Hard-Case Lite, 700x25c
Shift LeversShimano Claris, 2x8 speed
Rear DerailleurShimano Claris
CassetteShimano HG31, 11-32
CranksetShimano RS-200, 50/34 (compact)
BrakesAlloy dual-pivot
SizesMen's 56cm
Women's 52cm


DOMANE AL 4 £900 SALE PRICE 56cm £795

Frame100 Series Alpha Aluminium, DuoTrap S compatible, hidden mudguard mounts
ForksDomane carbon, hidden mudguard mounts
TyresBontrager R1 Hard-Case Lite, 700x25c
Shift LeversShimano Tiagra, 2x10 speed
Rear DerailleurShimano Tiagra
CassetteShimano Tiagra, 11-32
CranksetShimano Tiagra, 50/34 (compact)
BrakesAlloy dual-pivot
SizesMen's 56cm


Domane SL Carbon Frame


DOMANE SL 5 DISC £2350 SALE PRICE 56cm £2095

Frame500 Series OCLV Carbon, Front & Rear IsoSpeed, tapered head tube, BB90, flat mount disc brakes, 12mm thru-axle, internal cable routing, hidden mudguard mounts, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
ForksDomane carbon disc, carbon tapered steerer, flat mount disc brakes, 12 mm thru-axle
TyresBontrager R1 Hard-Case Lite, 700x32c
Shift LeversShimano 105, 2x11 speed
Rear DerailleurShimano 105
CassetteShimano 105, 11-34
CranksetShimano 105, 50/34 (compact)
BrakesShimano 105 flat mount hydraulic disc
SizesMen's 56cm


Trek 2018
Road - Drop Handlebars

Domane SL Carbon Frame


DOMANE SL 5 £1900 SALE PRICE 56cm blue £1395

Frame500 Series OCLV Carbon, Front & Rear IsoSpeed, E2 tapered head tube, BB90, direct mount brakes, Power Transfer Construction, hidden mudguard mounts, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
ForksDomane carbon, carbon E2 steerer, direct mount brakes
TyresBontrager R1 Hard-Case Lite, 700x28c
Shift LeversShimano 105, 2x11 speed
Rear DerailleurShimano 105
CassetteShimano 105, 11-32
CranksetShimano 105, 50/34 (compact)
BrakesShimano 105, direct mount
SizesMen's - 56cm


Aluminium Frame - Women's Specific Design

LEXA C £575 SALE PRICE Purple, 47cm £475

Frame100 Series Alpha Aluminium, mudguard & rack compatible
ForksTrek carbon road
TyresBontrager T1, 700x25c
Shift LeversShimano Claris, 2x8 speed
Rear DerailleurShimano Claris
CranksetVuelta Corsa, 50/34 (compact)
BrakesAlloy dual-pivot
Sizes50cm




****SHIMANO Di2 CUSTOM-SETTING****





Whyte 2020

Gravel / Adventure

GISBURN £1999

Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
ForksWhyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
TyresWTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casin
Shift LeversShimano GRX ST-RX810, 1x11 Speed
Rear DerailleurShimano GRX RD-RX812, Shadow Plus
CassetteShimano CS-M7000, 11-42
CranksetEaston EA90, Direct Mount 38T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm
BrakesShimano GRX BR-RX810, 160mm Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


FRISTON £1699

Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
ForksWhyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
TyresWTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Shift LeversSRAM Apex 1, Full Hydraulic, 1X11 Speed
Rear DerailleurSRAM Apex 1, Long Cage
CassetteSRAM XG-1150, 10-42
CranksetSRAM Apex 1, X-SYNC, 40T Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm
BrakesSRAM Apex 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


RoadPLUS / Adventure

GLENCOE £1299

Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
ForksWhyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
TyresWTB Horizon TCS System 650b x 47c, Light/Fast , Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Shift LeversSRAM Apex 1, Mechanical, 1x11 Speed
Rear DerailleurSRAM Apex 1, Long Cage
CassetteSunRace CSMS8, 11-42
CranksetWhyte, Forged Cranks, Direct Mount 44T Narrow Wide Chainring
BrakesTRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


RDC7 Carbon Performance Road Disc

WESSEX Di2 £3650

FrameUni-directional Multi Monocoque with Flat Mount 160 Disc Mount, DOX Internal Cable Routing, Verti-Grip Integrated Seat Clamp System, Concealed Eyelets for Mud Guards and 142mm Rear Dropouts with 12mm Through Axle
ForksStraight Bladed Carbon Front Fork, Tapered Carbon Steerer with 12mm x 100mm Stealth Through Axle, Concealed Eyelets for Mud Guards
TyresSchwalbe Pro-ONE, 700 x 28c, TL-Easy Tubeless System, MicroSkin Puncture Protection
Shift LeversShimano ST-R8070 Ultegra Di2, 2x11 Speed
Rear DerailleurShimano RD-R8050 GS Ultegra Di2 GS
CassetteShimano CS-R8000 Ultegra, 11-34
CranksetShimano FC-R8000 Ultegra, Double 50-34, Hollowtech
BrakesShimano Ultegra BR-R8070 Hydraulic, Centre-lock 160mm Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


WESSEX £2250

FrameUni-directional Multi Monocoque with Flat Mount 160 Disc Mount, DOX Internal Cable Routing, Verti-Grip Integrated Seat Clamp System, Concealed Eyelets for Mud Guards and 142mm Rear Dropouts with 12mm Through Axle
ForksStraight Bladed Carbon Front Fork, Tapered Carbon Steerer with 12mm x 100mm Stealth Through Axle, Concealed Eyelets for Mud Guards
TyresSchwalbe G-ONE Speed, 700 x 30c, TL-Easy Tubeless System, MicroSkin Puncture Protection
Shift LeversShimano ST-R8020 Ultegra, 2x11 Speed
Rear DerailleurShimano RD-R8000 GS Ultegra
CassetteShimano CS-5800 105, 11-32
CranksetShimano FC-R510, Double 50-34, Hollowtech
BrakesShimano Ultegra BR-R8070 Hydraulic, Centre-lock 160mm Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


WESSEX ONE £1999

FrameUni-directional Multi Monocoque, One-By Specific, with Flat Mount 160 Disc Mount, DOX Internal Cable Routing, Verti-Grip Integrated Seat Clamp System, Concealed Eyelets for Mud Guards and 142mm Rear Dropouts with 12mm Through Axle
ForksStraight Bladed Carbon Front Fork, Tapered Carbon Steerer with 12mm x 100mm Stealth Through Axle, Concealed Eyelets for Mud Guards
TyresWTB Exposure, 700 x 30c, TCS System, Distance Compound
Shift LeversSRAM APEX 1, Full Hydraulic, 1x11 Speed
Rear DerailleurSRAM APEX 1, Long Cage
CassetteSRAM PG-1150, 10-42
CranksetSRAM APEX 1, X-SYNC 44T Chainring
BrakesSRAM Force 1 Hydraulic, 160mm Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm, 56cm, 58cm


RD7 Sports Road / Commuter Disc

DEVON (Compact Geometry) £999

Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Flat Mount 160 Chainstay Disc Mount
ForksWhyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts with Eyelets for Mudguards
TyresSchwalbe G-One Speed 700 x 30c, Race Guard
Shift LeversShimano Sora SL-R3000, 2x9 Speed
Rear DerailleurShimano Sora RD-R3000 GS
CassetteShimano CS-HG-200, 11-36
CranksetFSA Vero Adventure Pro, Double 48-32, 47/49 170mm, 51 172.5mm, 53 175mm
BrakesTRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
Sizes47cm, 49cm, 51cm, 53cm


DORSET £999

Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Flat Mount 160 Chainstay Disc Mount
ForksWhyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts with Eyelets for Mudguards
TyresSchwalbe G-One Speed 700 x 30c, Race Guard
Shift LeversShimano Sora SL-R3000, 2x9 Speed
Rear DerailleurShimano Sora RD-R3000 GS
CassetteShimano CS-HG-200, 11-36
CranksetShimano FC-R345, Double 50-34, 52 170mm, 54/56/58 175mm
BrakesTRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
Sizes52cm, 54cm, 56cm, 58cm


Whyte 2019

Gravel / Adventure

FRISTON £1699 SALE PRICE...52cm, 54cm NOW £1499



Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing with Inter-Grip Seat Clamp System
ForksWhyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 15mm x 100mm Stealth Through Axle, Eyelets for Mudguards
TyresFront - WTB Resolute TCS System 700 x 42c, TCS Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Rear - WTB Riddler TCS System 700 x 37c Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Shift LeversSRAM APEX 1, Full Hydraulic, 1X11 Speed
Rear DerailleurSRAM APEX 1, Long Cage
CassetteSRAM XG-1150, 10-42
CranksetSRAM APEX 1, X-SYNC, 40T Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm
BrakesSRAM APEX 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing
Sizes50cm, 52cm, 54cm


-->

Whyte 2018

Gravel / Adventure

GISBURN £1999 SALE PRICE 54cm £1699

Frame6061 Hydro Formed T6 Aluminium, SCR, Custom Drawn, Multi Butted, Chainstay Flat Mount 160 Disc Mount, DOX Cable Routing with Inter-Grip Seat Clamp System
ForksStraight Bladed Carbon Front Fork with Internal Hose Routing, Tapered Alloy Steerer, Flat Mount Dropouts and 15mm Stealth Through Axle
TyresMaxxis Rambler TR, 60TPI, Silkshield, Folding Carbon Bead, 700 x 40c
Shift LeversSRAM Force 1, Carbon Hydraulic, 1x11 Speed
Rear DerailleurSRAM Force 1, Long Cage
CassetteSRAM PG-1150, 10-42
CranksetSRAM Force 1, X-SYNC 40T Chainring, 175mm Crank Length, Carbon
BrakesSRAM Force 1 Hydraulic, 160mm Flat Mount
Sizes 54cm


Whyte 2017

RDC7 Performance Road Disc

WESSEX £2250 SALE PRICE 56cm £1595

FrameUni-directional Multi Monocoque with Flat Mount 160 Disc mount, DOX internal cable routing, Verti-Grip integrated seat clamp system, concealed eyelets for Mud Guards and 142mm rear dropouts with 12mm through axle
ForksStraight Bladed Carbon Front Fork, Tapered Alloy Steerer with, 12mm x 100mm through axle, concealed eyelets for Mud Guards
TyresSchwalbe S-One, 700 x 32c, TL-Easy Tubeless System, MicroSkin Puncture Protection, Folding
Shift LeversShimano ST-685 Ultegra, 2x11 Speed
Rear DerailleurShimano RD-6800 GS Ultegra
CranksetFSA Gossamer Pro EVO-386 DB 34-50, Compact Double
BrakesShimano BR-805 Hydraulic, Centre-lock 160mm Rotor
Sizes 56cm


Ridgeback World Series

TOUR £549

Frame6061 Heat treated Aluminium
ForksCro Moly
Shift LeversShimano Claris ST-2403, 3x8 Speed
Rear DerailleurShimano RD-T3000
CranksetShimano FC-M311 48/38/28
BrakesTektro CR-510
Sizes 54cm


Buying your bike from Stanley Fearn's

Payment


FACEBOOK Stanley Fearn home page


click to enter
HISTORY
click to enter
Our Staff
click to enter
The Peak District
click to enter
Service
click to enter
How to find Us
click to enter
Choosing a Bike
click to enter
E-Bikes
Full Suspension
click to enter
E-Bikes
Hardtail Mountain Bikes
click to enter
E-Bikes
Hybrid & Folders
click to enter
E-Bikes
Drop-bar Road
click to enter
Full Suspension
click to enter
Hardtail Mountain Bikes
click to enter
Drop-Bar Road,
Gravel & Touring
click to enter
Hybrid, Comfort & Straight-Bar Road
click to enter
Juniors
click to enter
Accessories
click to enter
SALE!

Website design and content © 1999 - 2019 Stanley Fearn Cycles Ltd
